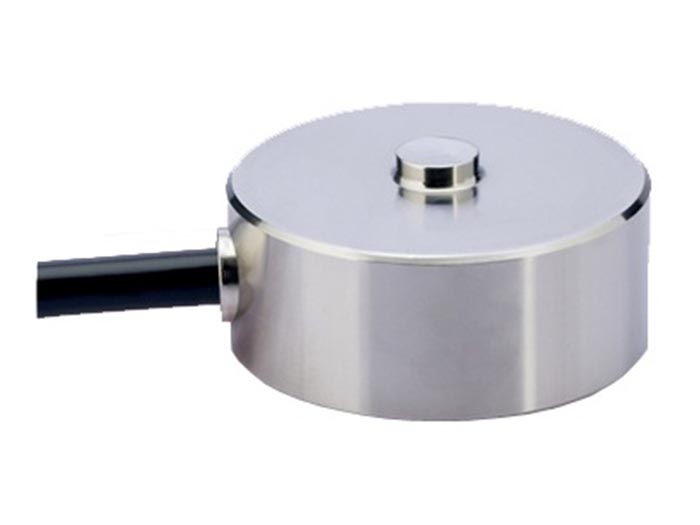

Download Brochure MINIATURE LOAD CELL

Special Features

  • Good Linearity
  • Good Repeatability
  • Easy to Install
  • Temp Compensated
  • Wide Range
  • Good Reliability

Specifications

Model EP-616-M.
Rated Load Capacity 10, 50, 100, 200, 500 Kgs.
Rated Output Sensitivity 1.5 to 2 mV/V ± 0.3%.
Input Resistance 350 ± 10 Ohms.
Output Resistance 350 ± 5 Ohms.
Excitation Voltage 5 to 12 Volts DC/AC (RMS).
Non Linearity ± 0.5 % of Rated Output.
Hysteresis ± 0.5 % of Rated Output.
Creep ± 0.2 % of Rated Output.
Non Repeatability ± 0.1% of Rated Output.
Zero Balance 2 % of Rated Output.
Operatable Temperature Range - 20°C to 60° C.
Compensated Temperature Range 0° C to 45° C.
Temperature Effect on Zero 0.005% of Rated Output/°C.
Temperature Effect on Output 0.005% of Rated Output/°C.
Over Load Rating, Safe 150% of Rated Capacity.
Over Load Rating (Ultimate) 200% of Rated Capacity.

DIMENSIONS
