Payload Monitoring System for Front End Loader

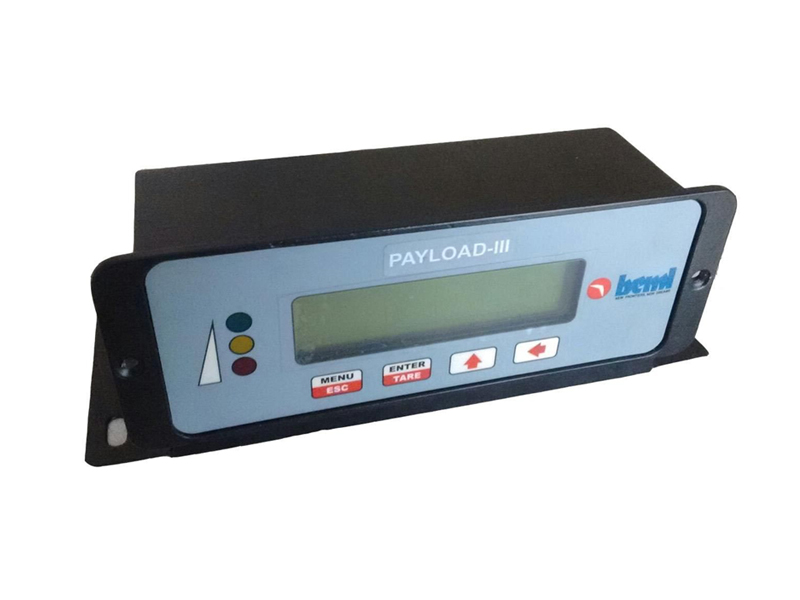

We take this opportunity to introduce our new Modified Payload monitoring system as per application of Payload – I.

Advantages Compare With Payload - I

  • Technologies and hardware design as per APLMS System
  • Small in size
  • Logic selection – menu operated
  • Panel Mountable or Table Top
specifications
  • 2x16 characters LCD display.
  • Input: 4-20 ma from 4 pressure sensors.
  • Interlocking signals to capture weight from Neutral /parking brake.
  • 3 digital ouputs for external Lamps.
  • Warning alarm for abnormal conditions.
  • RS 232 output with baudrate selectable.
  • Power input: DC 18-36V
Features
  • Fully automatic weight capture Individual load information with date and time.
  • No. of trips, overload trips and cumulative load information on display.
  • Backlit LCD
  • Load condition lamps on top of the dumper.
  • 3000 load data
  • Built in Real time clock
  • Date wise summary report
  • Serial printer / PC interface.

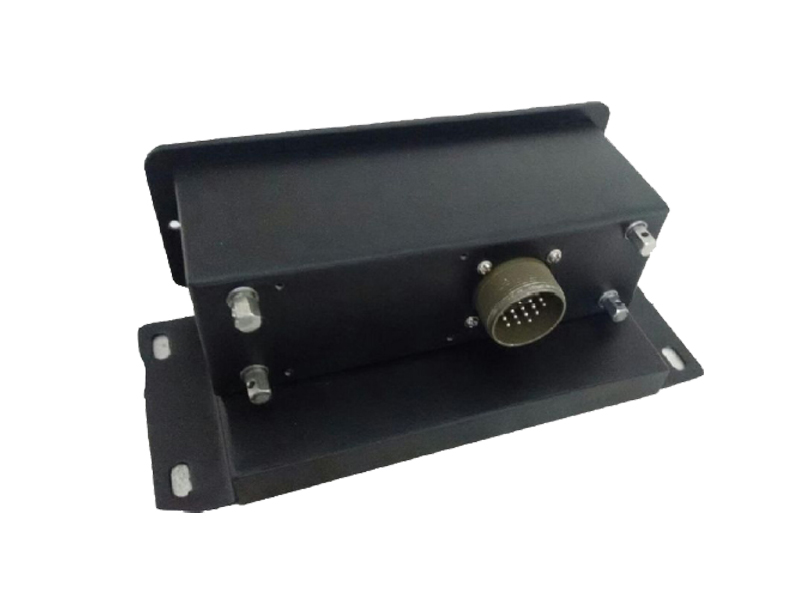

  • 19 Pin military grade connector.

Mechanical design

  • Panel mountable -> the dimension will match with dash board cut out of APLMS or as per Payload – I bottom plate fixing.
  • It contains same pin out configuration of Payload 1 and it is rugged due to direct soldering of all components.
