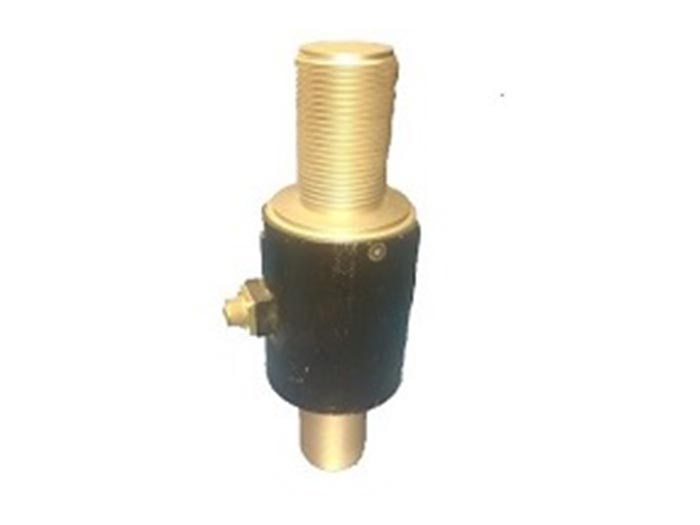

Download Brochure UNIVERSAL LOAD CELL

Special Features

  • Tension & Compression
  • Good Linearity
  • Good Repeatability
  • Easy to Install
  • Temp Compensated
  • Wide Range
  • Good Reliability

Specifications

MODEL ULC.
Rated Load Capacity 1, 2, 5, 10, 20, 50 Tonne.
Rated Output Sensitivity 3 mV/V ± 0.3%.
Input Resistance 350 ± 10 Ohms.
Output Resistance 350 ± 5 Ohms.
Excitation Voltage 10 to 15 Volts DC/AC (RMS).
Non Linearity ± 0.05 % of Rated Output.
Hysteresis ± 0.05 % of Rated Output.
Creep ± 0.1 % of Rated Output.
Non Repeatability ± 0.05% of Rated Output.
Zero Balance 2 % of Rated Output.
Operatable Temperature Range - 20°C to 60° C.
Compensated Temperature Range 0° C to 50° C.
Temperature Effect on Zero 0.005% of Rated Output/°C.
Temperature Effect on Output 0.005% of Rated Output/°C.
Over Load Rating, Safe 120% of Rated Capacity.
Over Load Rating (Ultimate) 150% of Rated Capacity.

DIMENSIONS

CAPACITY Ø A C C2 D H R M Weight (Approx)
1 Tonne 70 40 38 60 145 75 M24 x 2P 1.7 Kgs
2 Tonne 80 40 38 60 145 75 M24 x 2P 1.8 Kgs
5 Tonne 80 45 42 70 165 75 M24 x 2P 2.0 Kgs
10 & 20 Tonne 90 60 55 80 210 300 M42 x 3P 4.2 Kgs
50 Tonne 120 100 95 150 360 400 M64 x 4P 15 Kgs
