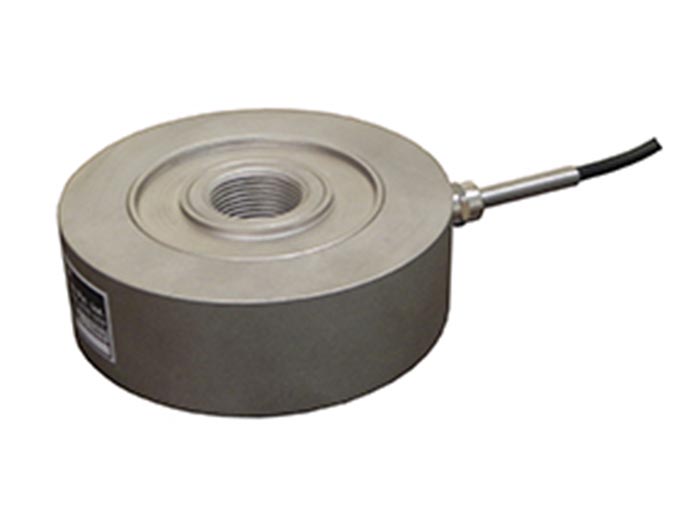

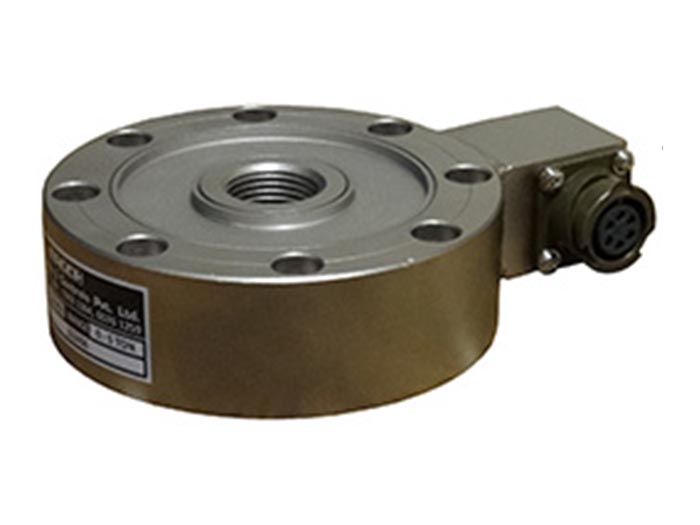

Shear Web Load Cell

High Precision strain gauge based Shear Web Load Cell is universal type. It is used for measurement, weighing, industrial automation, Universal Testing Machines. It is universal Load Cell Suitable for both tension and compression modes.

Specifications


Model LSE – 23 (H2), 53 (H2), 14 (H2), 153 (H2), 24 (H2), 34 (H2).
Rated Load Capacity 2, 5, 10, 15, 20, 30 TONNE.
Rated Output Sensitivity 2 mV/V ± 0.3%.
Input Resistance 700 ± 10 Ohms.
Output Resistance 700 ± 5 Ohms.
Excitation Voltage 10 to 15 Volts DC/AC (RMS).
Non Linearity ± 0.2% of Rated Output.
Hysteresis 0.2 % of Rated Output.
Creep 0.1 % of Rated Output.
Non Repeatability ± 0.05% of Rated Output.
Zero Balance 2% of Rated Output.
Operatable Temperature Range ‐ 20°C to 65° C.
Compensated Temperature Range 0° C to 55° C.
Temperature Effect on Zero 0.005 % of Rated Output/°C.
Temperature Effect on Output 0.005 % of Rated Output/°C.
Over Load Rating, Safe 150 % of Rated Capacity.
Over Load Rating (Ultimate) 200 % of Rated Capacity.
